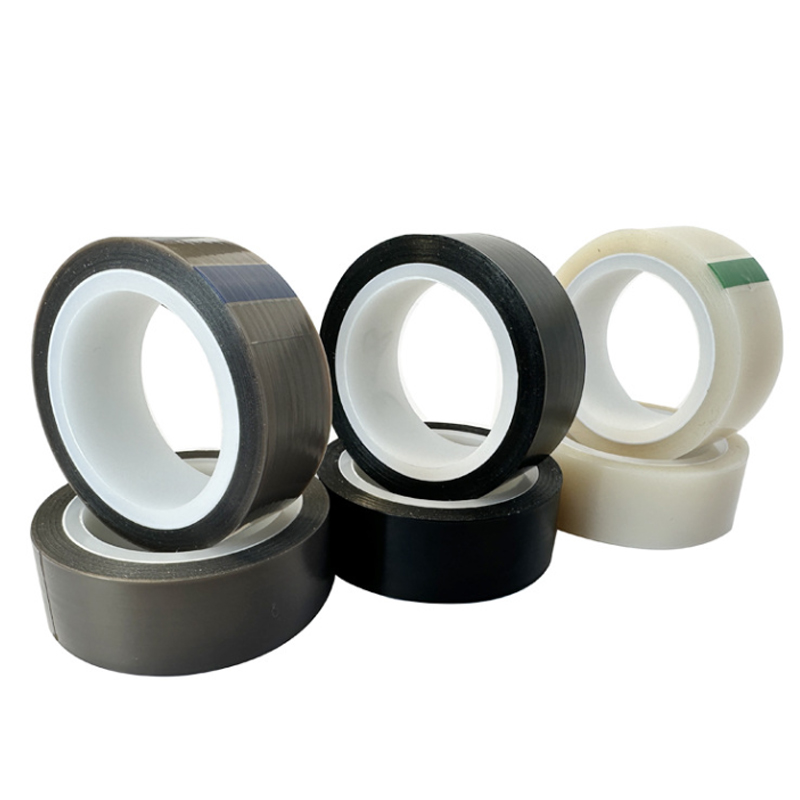

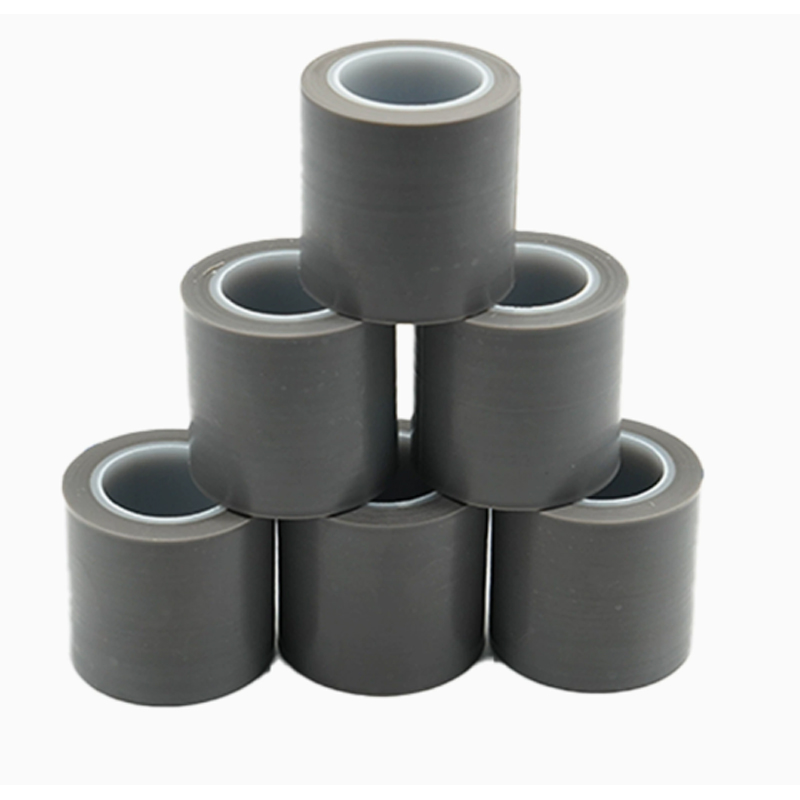

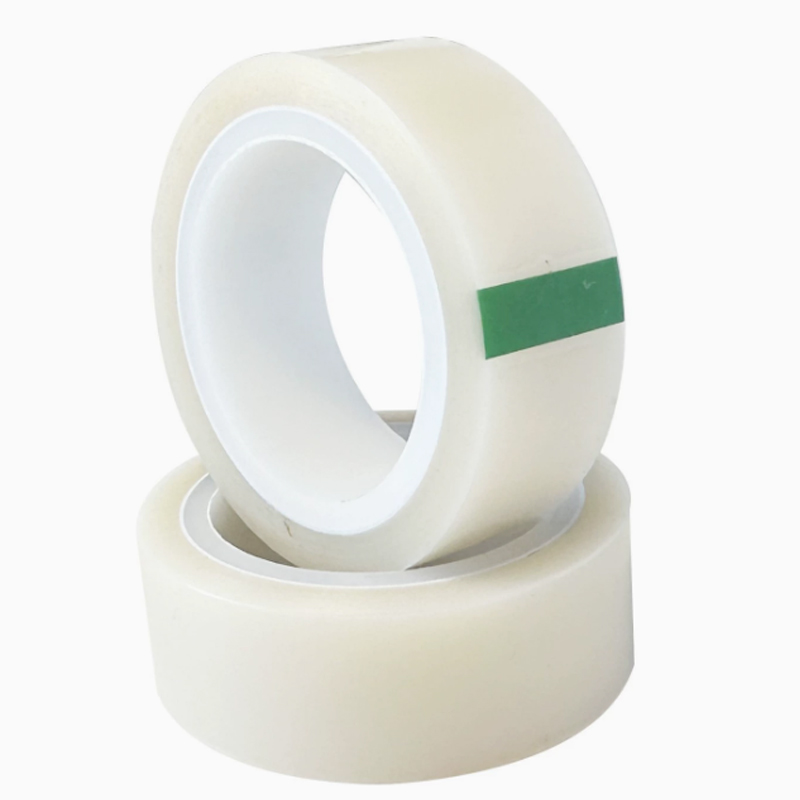

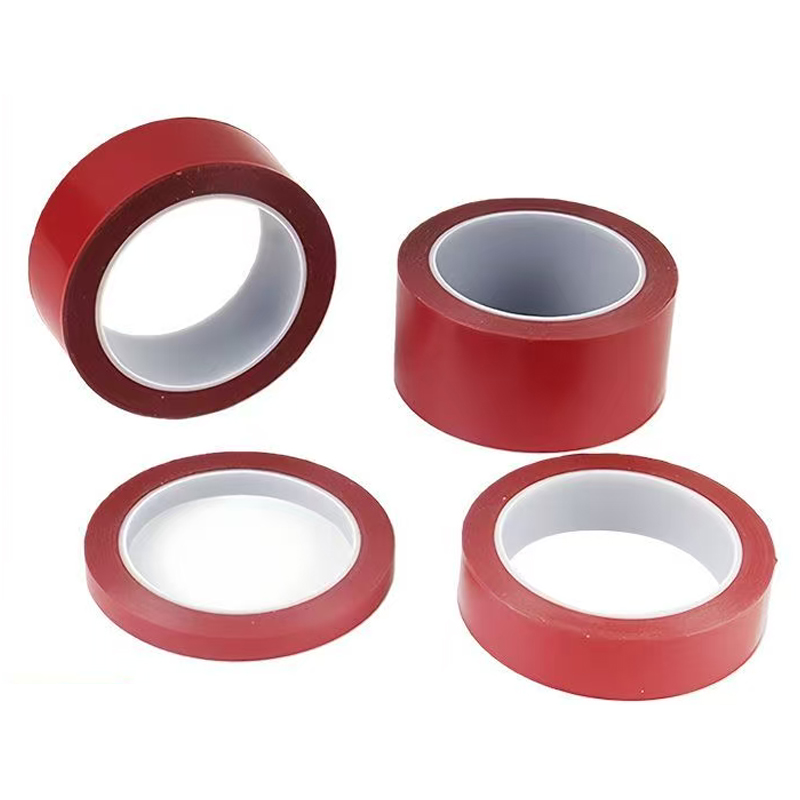

PTFE Skived Film Tape
PTFE Skived Film Tape are made from pure unsupported virgin PTFE film coated with high temperature silicone adhesive. Our PTFE film adhesive tape provide exceptional features and exhibit the properties of our ptfe coated fiberglass tape with the advantage of being comfortable. Good strength, abrasion resistance and the low friction properties of Skived PTFE film make it a prime choice for mechanical applications from lining guide rails to wrapping wire harnesses. For mechanical applications and all-purpose use, PTFE tape offers superior low friction and non-stick properties..
Applications
1.Excellent release surface on packaging equipment and heat sealing machines, roll coverings on plastic extruders, guide rails, and angle bars in the graphic arts industry
2.Insulation buffer for RF sealing
3.Many electrical applications
4.Mandrel Coverings
5.Mold release linings
2.Insulation buffer for RF sealing
3.Many electrical applications
4.Mandrel Coverings
5.Mold release linings
Feature
1.Exceptional electrical properties
2.Operational and dimensionally stable from –100°F (-73° C) to +500°F (+260°C)
3.Excellent release properties, low-friction surface
4.High chemical and abrasion resistance
2.Operational and dimensionally stable from –100°F (-73° C) to +500°F (+260°C)
3.Excellent release properties, low-friction surface
4.High chemical and abrasion resistance
5.Very conformable
6.High temperature silicone adhesive system
7.High Dielectric Breakdown
6.High temperature silicone adhesive system
7.High Dielectric Breakdown
|
Item No.
|
Basic fabric thickness
|
Total thickness
|
Adhesion(to steel)
|
Tensile strength
|
Temperature resistance
|
|
F005AS
|
0.05mm
|
0.08mm
|
22N/100mm
|
800N/100mm
|
-70-260ºC
|
| F7008AS |
0.08mm
|
0.13mm
|
22N/100mm
|
1050N/100mm
|
-70-260ºC
|
| F7013AS |
0.13mm
|
0.18mm
|
22N/100mm
|
1650N/100mm
|
-70-260ºC
|
| F7025AS |
0.20mm
|
0.25mm
|
22N/100mm
|
2350N/100mm
|
-70-260ºC
|
