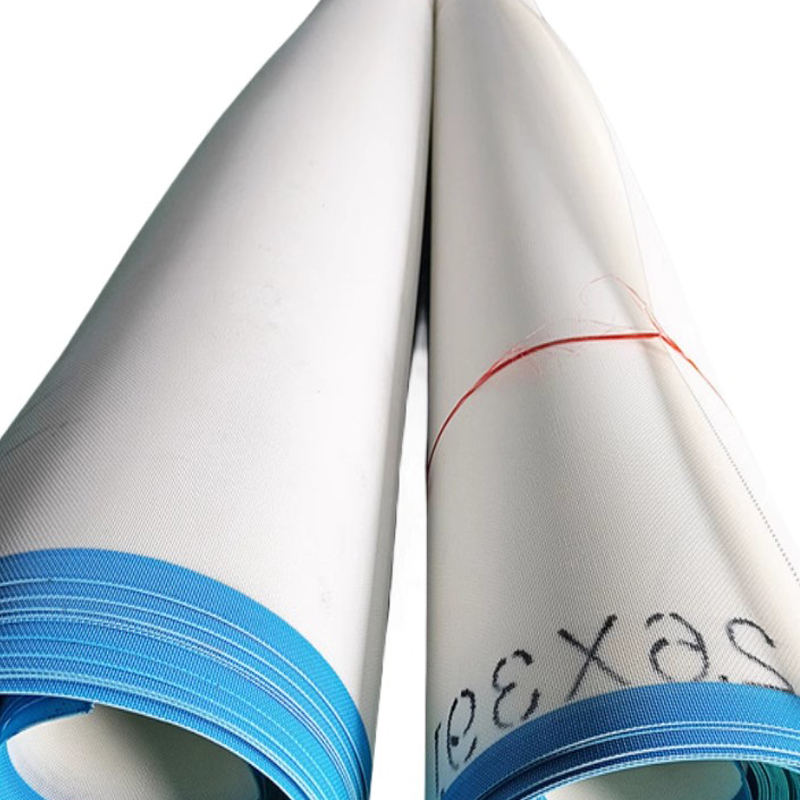

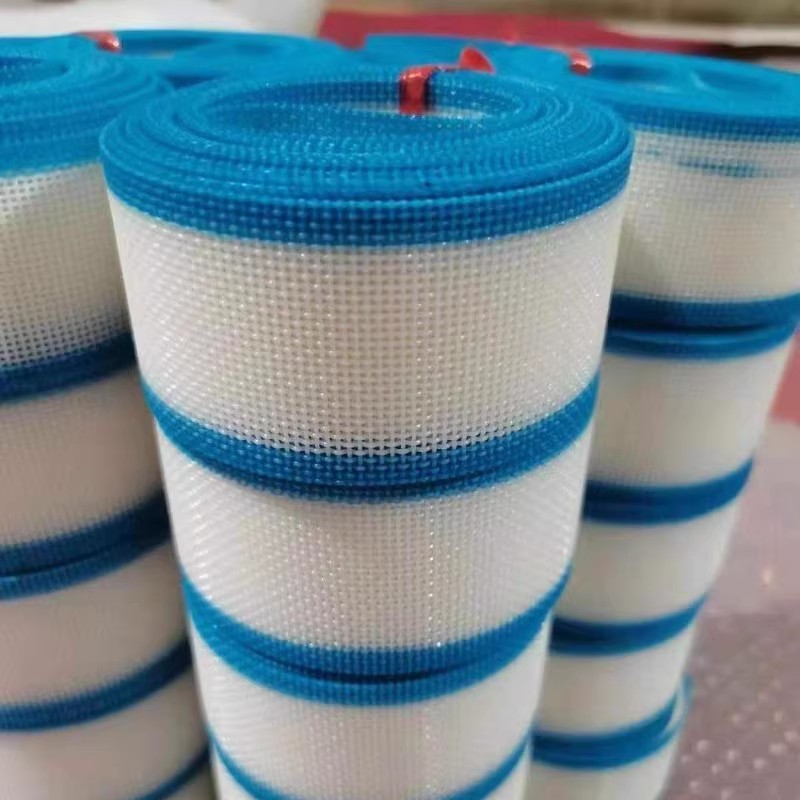

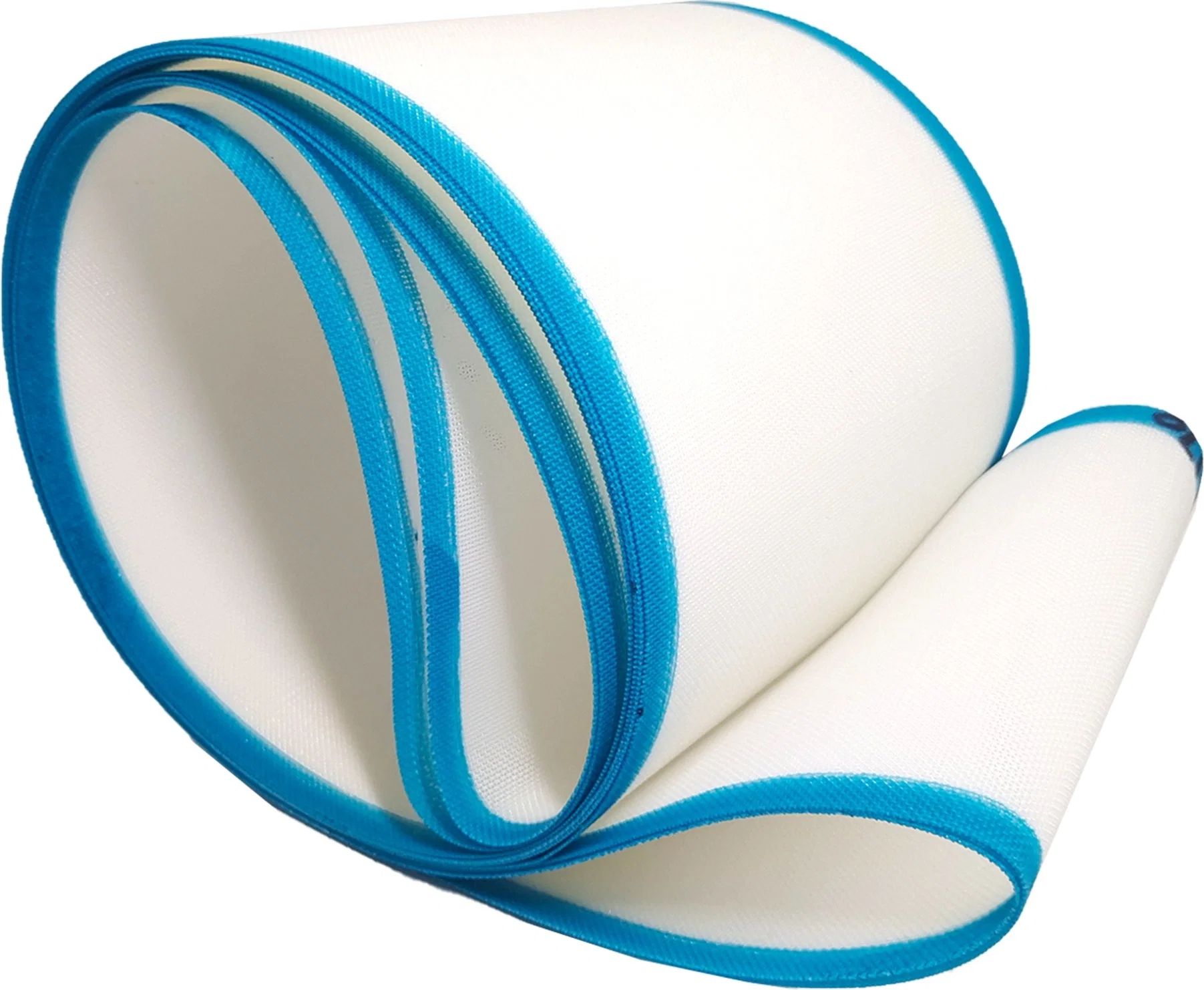

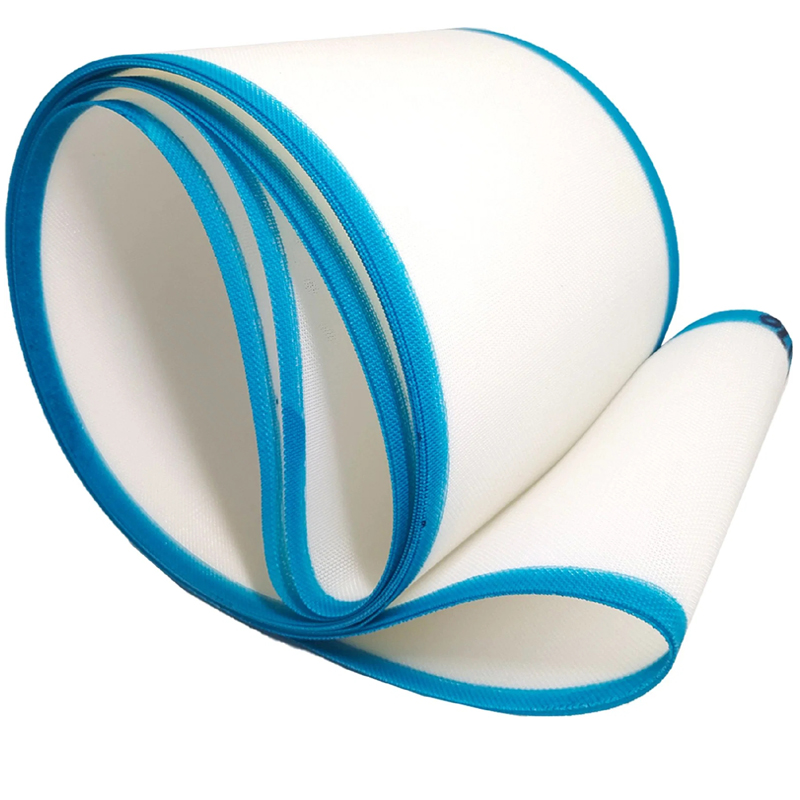

Polyester Spiral Mesh Belts Properties:
♦ Use hot air to set the shape, evenly heat, and improve the service life of the mesh belt.
♦ Excellent chemical stability, BPA-free, Food grade certification
♦ Sealed edges for lasting, economical solutions
♦ Seamless connection, no swelling at the joint, and the same air permeability in the whole filtering area.
♦ Selected raw yarn, smooth surface, not easy to stick, easy to clean.

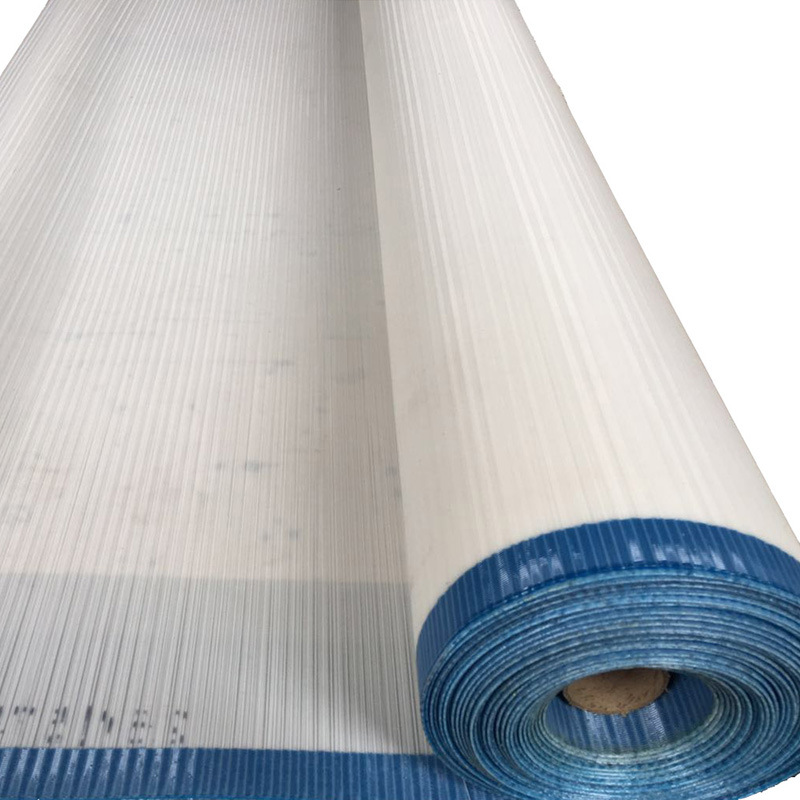

Polyester spiral press-filter fabrics are adding the filler wire into spiral ring, so the air permeability is reduced and less material loss on the surface of the fabric. They are mainly used in paper making, printing and dyeing, food, pharmaceutical, ceramics and solid-liquid separation industries like sludge dehydration.
| Size | Type | Spiral loop width | Filament diameter | Strength | Weight | Thickness | Air permeability | CFM | ||
| (mm) | (mm) | (N/cm) | (Kg/m2) | (mm) | (m3/m2h) | (127/pa) | ||||
| Spiral ring monofilament | Connection Wire | filler material monofilament | ||||||||
| Small loop | Mk-5080-1A | 5.2 | 0.5 | 0.8 | 0.60*3 | 1800 | 1.5 | 2.1 | 4480 | 280 |
| Medium loop | Mk-6890-1A | 8 | 0.68 | 0.9 | 0.80*4 | 2000 | 2 | 2.45 | 6080 | 380 |
| Mk-6890-2A | 7.15 | 0.68 | 0.9 | 0.90*3 | 2000 | 1.9 | 2.45 | 5760 | 360 | |
| Mk-6890-2B | 7.15 | 0.68 | 0.9 | 0.80*3 | 2000 | 1.85 | 2.45 | 7750 | 484 | |
| Mk-6890-2C | 7.15 | 0.68 | 0.9 | Flat Wire 2.1*0.80 | 2000 | 1.8 | 2.45 | 9000 | 563 | |
| Mk-6890-2D | 7.15 | 0.68 | 0.9 | Flat Wire 2.1*0.88 | 2000 | 1.85 | 2.45 | 8000 | 500 | |
| Mk-6890-2E | 7.15 | 0.68 | 0.9 | Conductive carbon wire | 2000 | 1.6 | 2.45 | 10000 | 625 | |
| Large loop | Mk-9090-1A | 8 | 0.9 | 0.9 | 0.90*3 | 2300 | 2.3 | 3.03 | 7500 | 468 |
| Mk-90110-1A | 10 | 0.9 | 1.1 | 1.0*4 | 2000 | 2.4 | 3.15 | 6240 | 390 | |
| Mk-90110-1B(Alkali resistance ) | 10 | 0.9 | 1.1 | 1.2*3 | 2000 | 2.25 | 3.15 | 6240 | 390 | |
| Mk-10090-1A | 8 | 1 | 0.9 | 1.0*3 | 2000 | 2.5 | 3.6 | 5000 | 315 | |
| Mk-120130-1A | 1.2 | 1.2 | 1.3 | 1.2*3 | 2600 | 2.85 | 4.3 | 7500 | 468 | |
